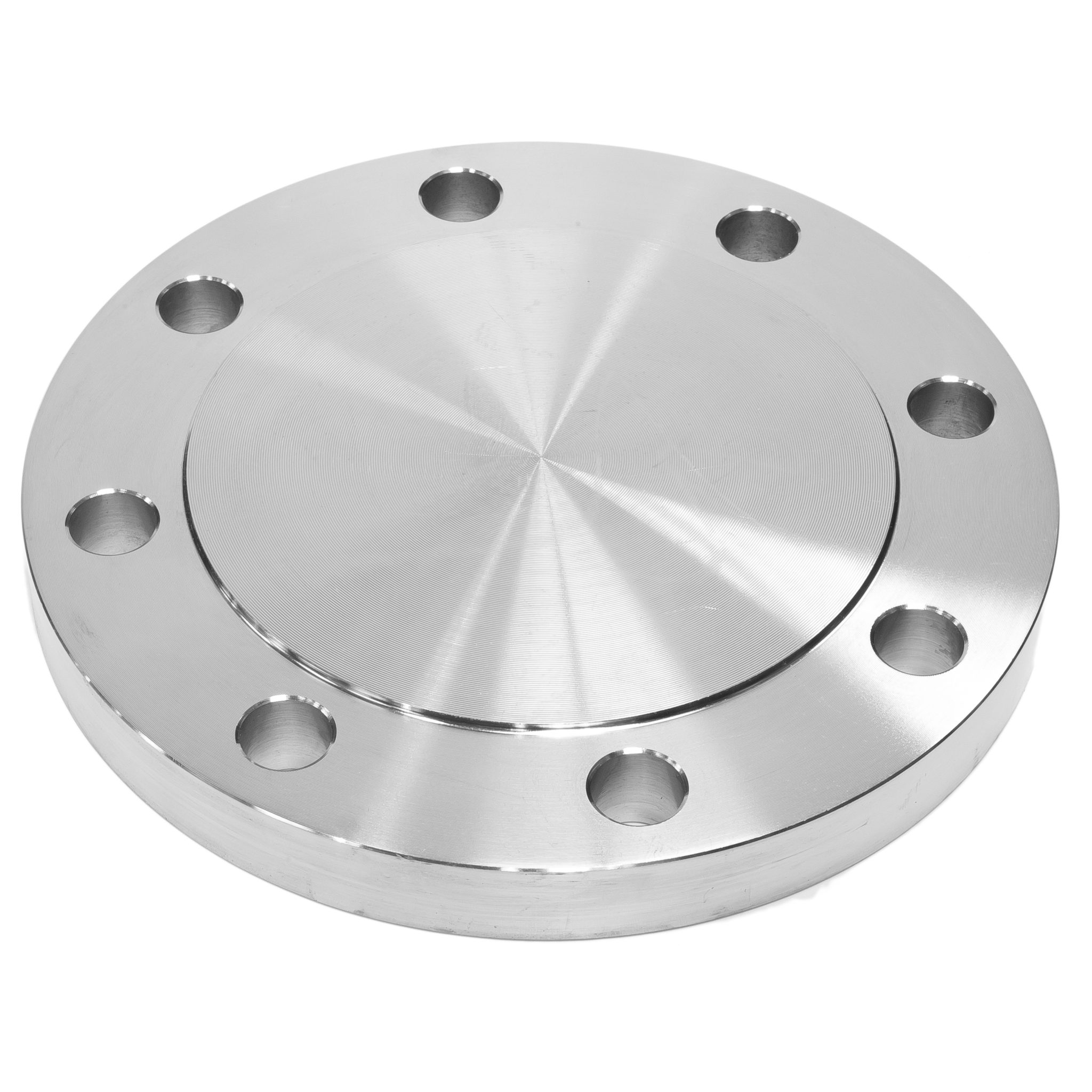

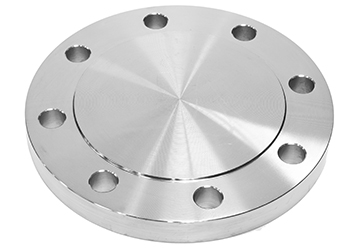

Blind Flanges

M/s SHUBH UDYOG is a specialised manufacturer of high quality ASME/ANSI/DIN industrial blind flanges in India. We offer immediate delivery programs for standard size of carbon steel blind flanges and stainless steel blind flanges. Plate blind flanges manufactured in special stainless steel grades, nickel alloy and alloy steel can be supplied with just in time programs. Commonly referred as blanking flanges, Blind pipe flanges are widely used in high pressure applications. Blind flanges are generally used to seal the end of a piping system to prevent flow of liquids or gases. The use of blind flanges allows ease of access to a piping system once it has been closed. Our blind flanges are available with raised or RT] faces and also with female threads. Blind flanges can be supplied with or without hub as per the customer requirements.Our products are widely exported to countries and regions such as the United States, Europe, Russia, Turkey, Malaysia, the UAE, Saudi Arabia, Iran, Brazil, Chile, Mexico, South Africa, Jordan, Tunisia, Vietnam, Indonesia, Thailand, Singapore, Colombia, and Sri Lanka. Size: 1/2" (15 NB) to 48" (1200NB)
Standards: ANSI B16.5, ANSI B16.47 Series A & B MSS SP 44, ASA, API -605, AWWA, Custom Drawings
Pressure Ratings: Class 150, Class 300, Class 400, Class 600, Class 900, Class1500, Class 2500 | PN6, PN10, PN16, PN25, PN40, PN64 etc.
Carbon Steel Blind Flanges: ASTM A105/ A105N A350 LF1, LF2 CL1/CL2, LF3 CL1 /CL2, A694 F42, F46, F48, FSO, F52, F56, F60, F65, F70, A516.60, 65, 70 (Spectacle Blind Flange, Spacer Ring/Spade Flange). Steel RST37.2, C22.8
Stainless Steel Blind Flanges: ASTM A182 F202, F304/ 304L/ 304H, F316 / 316L, F316H, F316 TI, F310, F321, F904L
Alloy Steel Blind Flanges: ASTM A182 F1, F5, F9, F11. F22, F91
Special Alloy Blind Flanges: Duplex, Super Duplex, Nickel Alloys
Flange Face Type: Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
Coating/Surface Treatment: Anti-rust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized
Value Added Services: CNC Machining, Cstamised Flanoes
